Yealink Business Conference Phone CP860 BaronTEL

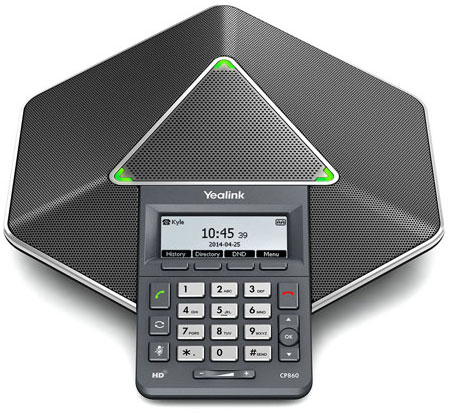

Yealink CP860 Business Conference Phone

Yealink CP860 Conference Desktop Phone from BaronTEL

The Yealink CP860 Business IP conference phone is a perfect choice for small and medium-sized conference room and can meet the demands of up to 16 people with optional expansion microphones. The CP860 provides many important audio features including optima HD technology, a build-in 3 microphone array, full-duplex technology and acoustic echo cancelling. This means that all users can enjoy rich, clear and life-like conference calls. The Yealink CP860 also supports call recording, plus linkages to mobile phones or PCs for a more convenient conference call experience.

Features:

Optima HD voice, full duplex technology
10-feet and 360 degree voice pickup
Optional expansion microphones for wider reception
320ms echo cancellation tail length
Connect to a mobile phone or PC for conference calls
5-way conferencing support
USB call recording support

Specifications:

Optima HD voice
10-feet (3-meter)microphone pickup, can be applied to medium-sized conference room
Built in 3-microphone array, 360 degree voice pickup
112 mm diameter and 2.7w speaker
Full-duplex speakerphone with AEC
Echo cancellation tail length is up to 320ms
Background noise suppression
Codecs: G.722, G.711(A/µ),G.729AB, iLBC
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
VAD, CNG,PLC, AJB, AGC/li>

Phone features:

1 VoIP Account
Call hold, mute, DND
Call recording, hotline
5-way conferencing calls
Redial, call waiting, emergency call • Call forward, call transfer, call return, dial plan • Ring tone selection/import/delete
Set date time manually or automatically
Volume adjustment

Phone features:

Local phonebook up to 1000 entries
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded
Black list

IP-PBX features:

Intercom, multicast paging
Anonymous call, anonymous call rejection
Voice mail, distinctive ringtone, call pickup

IP-PBX features:

192x64-pixel graphical LCD with backlight
24 total keys: 4 softkey, off-hook key, on-hook key,
mute, volume key, 3 navigation keys
Phone lock
National language selection
Caller ID with name, number
LCD display logo

Interface:

1xRJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af ), class 0
2xEX mic port
1xUSB2.0 port
1xmobile phone/PC port: 3.5mm
1xSecurity lock port

Network and Security:

SIP v1 (RFC2543), v2 (RFC3261)
SIP server redundancy supported
IPv4/IPv6
NAT transverse: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
SRTP for voice encryption
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X

Management:

Setup wizard
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
Zero-sp-touch, TR-069, SNMP
Reset to factory, reboot
Package tracing export, system log

Other Physical Features:

4 context-sensitive “soft” keys
External universal AC adapter (optional):AC 100~240V input and DC 5V/2AOutput
Power consumption (PSU): 2.8-5.6W
Power consumption (PoE): 3.9-8.1W
Dimension(W*D*H): 320mm*260m*52mm
Operating humidity: 10~95%
Storage temperature: -10~50°C

Yealink CP860 Conference Phone
